Air Handler Leaking Water From Bottom

Introduction

Discovering water leaking from the bottom of your air handler can be concerning. The air handler is the indoor component of your central air conditioning or heat pump system, responsible for circulating conditioned air throughout your home. A water leak indicates a problem with condensation drainage and, if left unattended, can lead to mold growth, water damage to your home, and reduced system efficiency. It’s crucial to address this issue quickly to prevent further complications and expensive repairs. This guide will walk you through potential causes and troubleshooting steps that you can take to resolve the problem.

Common Causes of Air Handler Leaking Water From Bottom

Here are some of the most common reasons why your air handler might be leaking water:

Clogged Condensate Drain Line: This is the most frequent cause. A blockage in the drain line prevents water from flowing away properly, causing it to back up and overflow.
Dirty Air Filter: A clogged air filter restricts airflow, causing the evaporator coil to get too cold and freeze. When the ice melts, it creates excessive water.
Frozen Evaporator Coil: Similar to a dirty filter, low refrigerant levels or a malfunctioning blower motor can cause the coil to freeze.
Broken or Disconnected Drain Pan: The drain pan collects condensation. Cracks or disconnections will lead to leaks.
Damaged or Rusty Drain Pan: Over time, the drain pan can rust and corrode, creating holes for water to leak through.
Improperly Sloped Drain Line: If the drain line doesn’t have enough slope, water can’t drain properly and will accumulate.
High Humidity: Excessively humid conditions can overwhelm the system’s ability to remove moisture, leading to increased condensation.
Refrigerant Leaks: While less common, low refrigerant can cause the evaporator coil to freeze and then leak when it thaws.

Symptoms Checklist

Look for these indicators to confirm the source of your problem:

Visible water pooling around the base of the air handler.
Water stains on the ceiling or walls near the air handler.
Musty or moldy odor coming from the air handler area.
The air conditioning system is not cooling as effectively as usual.
Ice formation on the refrigerant lines or evaporator coil.
Water dripping from the access panel of the air handler.
The drain pan is overflowing with water.

How to Fix Air Handler Leaking Water From Bottom Step-by-Step Guide

Follow these steps to troubleshoot and fix the leak:

Turn off the Power: Before you start, turn off the power to the air handler at the breaker box to prevent electrical shock.
Inspect the Air Filter: Remove and inspect the air filter. If it’s dirty, replace it with a new one.

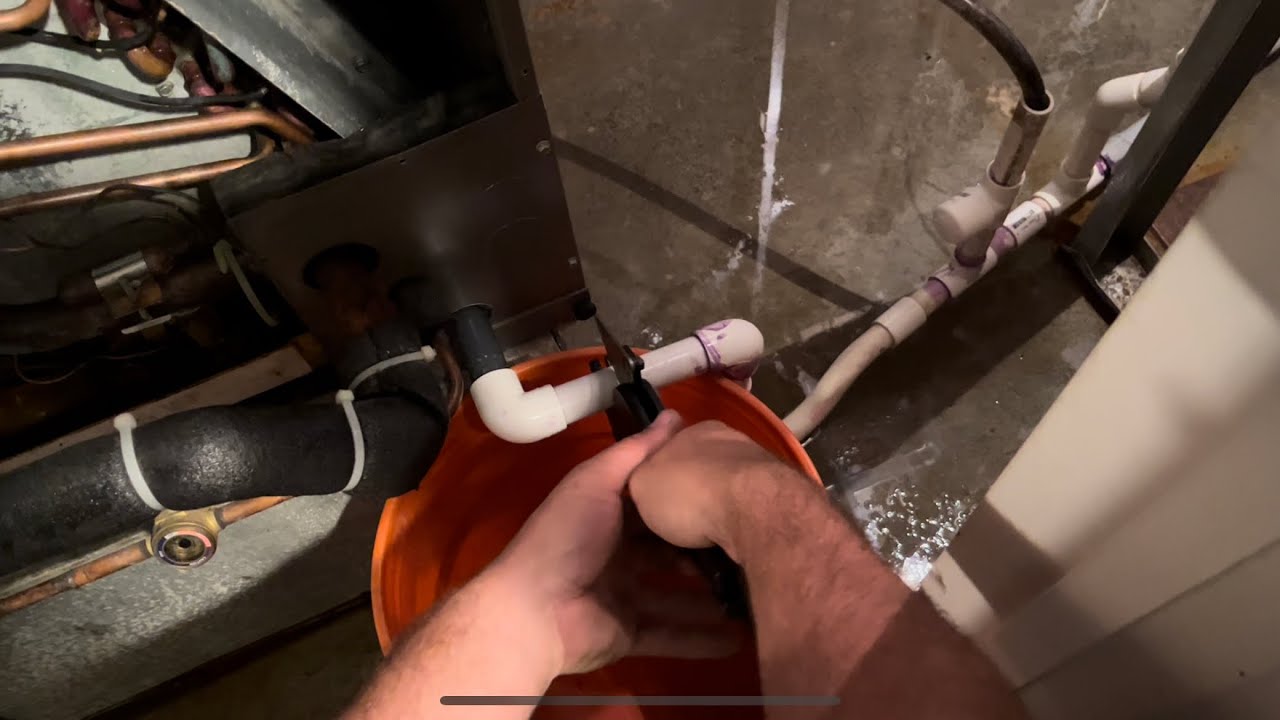

Locate the Condensate Drain Line: This is usually a PVC pipe that exits the air handler.
Check for Clogs: Look for visible clogs in the drain line opening.
Clear the Drain Line: Use a wet/dry vacuum to suck out any clogs from the drain line opening. Seal the vacuum hose tightly to the drain line opening.
Flush the Drain Line: Pour a cup of distilled vinegar into the drain line opening. Vinegar helps to dissolve mold and mildew. Let it sit for 30 minutes, then flush with water.
Check the Drain Pan: Inspect the drain pan for cracks, rust, or disconnections. It is located directly beneath the evaporator coils.
Ensure Proper Drain Line Slope: Make sure the drain line slopes downwards away from the air handler to ensure proper drainage. Adjust it if necessary.
Thaw a Frozen Coil: If you suspect a frozen coil, turn off the AC and turn on the fan only. This will help thaw the coil. You can also use a hair dryer on a low setting to carefully thaw it.
Inspect the Insulation: Check the insulation around the refrigerant lines for damage. Damaged insulation can cause condensation to form.
Reconnect Disconnected Drain Lines: If you find disconnected drain lines, reattach them securely using PVC primer and glue if needed.
Dry the Area: Thoroughly dry the area around the air handler to prevent mold growth.
Turn the Power Back On: Once you’ve completed the troubleshooting steps, turn the power back on at the breaker box.
Monitor for Leaks: Monitor the air handler for any further leaks over the next few hours.

Fix the Issue Without Buying Parts

Here are some things you can try before considering replacing parts:

Regular Cleaning: Clean the drain line and drain pan at least twice a year with vinegar.
Filter Replacement: Change your air filter every 1-3 months.
Improve Ventilation: In humid environments, ensure proper ventilation in your home.
System Reset: Sometimes, simply turning off the system for a few hours and then turning it back on can help reset it.
Check for Obstructions: Make sure there are no obstructions around the air handler that could be affecting airflow.

When Replacement Might Be Necessary

If the drain pan is severely rusted or cracked beyond repair, it will need to be replaced. Replacement costs typically range from $100-$300 for the pan itself, plus labor. If the evaporator coil is damaged or leaking refrigerant, it may also require replacement, which can cost between $800 and $2000, including labor. Common parts that fail include the drain pan, condensate pump (if your system has one), and the evaporator coil itself.

Safety Warning

Always turn off the power to the air handler at the breaker box before performing any maintenance.
Avoid contact with standing water, as it may be electrically charged.
Use caution when handling tools and working in tight spaces.
Wear safety glasses to protect your eyes from debris.
If you are uncomfortable performing any of these steps, contact a qualified HVAC technician.

Tools You May Need

Wet/dry vacuum
Screwdriver
Pliers
Distilled vinegar
New air filter
Safety glasses
Gloves
PVC primer and glue (if repairing drain line)

FAQ

Here are some frequently asked questions regarding the air handler leaking water problem:

Q: How often should I clean my condensate drain line?
A: At least twice a year, or more frequently if you notice signs of a clog.
Q: Can a dirty air filter cause my air handler to leak water?
A: Yes, a dirty air filter can restrict airflow and cause the evaporator coil to freeze, leading to leaks.
Q: How do I know if my evaporator coil is frozen?
A: Look for ice formation on the refrigerant lines or evaporator coil. Also, the system may not be cooling effectively.
Q: What if flushing the drain line doesn’t solve the problem?
A: The clog may be further down the line or the drain pan may be damaged. In these cases, you may need to contact a professional.

Conclusion

Finding water leaking from your air handler can be alarming, but by following this guide, you can systematically troubleshoot the problem and often resolve it yourself. Regular maintenance, such as cleaning the drain line and replacing the air filter, can prevent future leaks. If you’ve tried these steps and are still experiencing issues, don’t hesitate to call a qualified HVAC technician for professional assistance. Addressing the issue quickly can prevent costly repairs and keep your home comfortable.
